Centurion FFC I/O Control



The next part of the FFC CPU we will look at is the I/O control. As shown in my last post there are two sets of 4 bits that are used to select input and output devices. The selectors can be seen in the schematic below. The one of the left control reads and the on on the right controls writes.

On the read side both enable inputs are tied to ground so the outputs are always enabled, meaning that one of the read outputs is always enabled, but S13 and S14 are not connected to anything so these can be used if no read operation is needed in a microcode instruction. The signals connected to the read outputs are as follows:

These are used to select various registers in the drive control hardware. These are used to read status and data from the drive.

0 = ReadFS1

1 = ReadFS3

2 = ReadFS2

3 = ReadFSDR1

4 = ReadFSDR2

6 = ReadFSDR3

This input reads the DMA status

11 = ReadStatus

These are used to access the internal RAM on the board. To read the RAM the address you want to reads needs to first be put in the memory index register then the ReadRAM input can be used to read the data. ReadIndexL and ReadIndexH can be used to read back the contents of the index register.

8 = ReadIndexL

12 = ReadIndexH

9 = ReadRAM

This inputs reads the System Register which is used by the FFC to communicate with the rest of the system.

10 = ReadSysReg

Finally this input reads from the Constant ROM. Unlike a normal CPU, the FFC's CPU cannot included data as part of an opcode so this is used to provide constant data to the CPU.

15 = ReadConst

On the write selector the enables are connected to MCClock and MasterReset. MCClock is the master clock so it probably needed for the proper timing of the writes. MasterReset is probably used to prevent spurious writes when the board is starting up. The signals connected to the write outputs are as follows:

This set of signals control writes to drive control registers.

0 = LoadDCR1

1 = LoadDCR2

2 = LoadSSBCL

3 = LoadFSDR1

4 = LoadFSDR23

5 = WriteFloppySync

6 = LoadSSBCH

7 = LoadTSM

This one loads the DMA control register

12 = LoadCtrlReg

These signals control access to the internal RAM. Just like for read, the address to write two must first be written to the Index registers and then the RAM can be written to using WriteRAM.

8 = LoadIndexL

11 = LoadIndexH

9 = WriteRAM

I believe this output is used to trigger interrupts to the main processor in the system.

13 = LoadIPL

This output writes to the System Register which is used by the FFC to communicate with the rest of the system.

10=WriteSys

These two outputs are unconnected so can be used for instructions where not output is needed.

14=No connection

15=No connection

Centurion FFC Microcode

The is one of a series of articles about the Centurion FFC board's custom CPU. In previous posts I explained how the program is stored as microcode. In this post we will take a look at what each bit in he microcode instruction does. In later posts I will dig deeper into some of these functions.

The first set of signals control the 2901 Chip Slice which I discussed in an earlier post.

These signals select which 2901 register goes on the A and B inputs to the ALU.

MP.H50 - ALU A Select 0
MP.H51 - ALU A Select 1
MP.H52 - ALU A Select 2
MP.H53 - ALU A Select 3
MP.H54 - ALU B Select 0
MP.H55 - ALU B Select 1
MP.H56 - ALU B Select 2
MP.H57 - ALU B Select 3

These signals select the ALU source, function and destination.

MP.H60 - ALU Source Select 0
MP.H61 - ALU Source Select 1
MP.H62 - ALU Source Select 2
MP.H64 - ALU Function Select 0
MP.H65 - ALU Function Select 1
MP.H66 - ALU Function Select 2
MP.H70 - ALU Destination Select 0
MP.H71 - ALU Destination Select 1
MP.H72 - ALU Destination Select 2

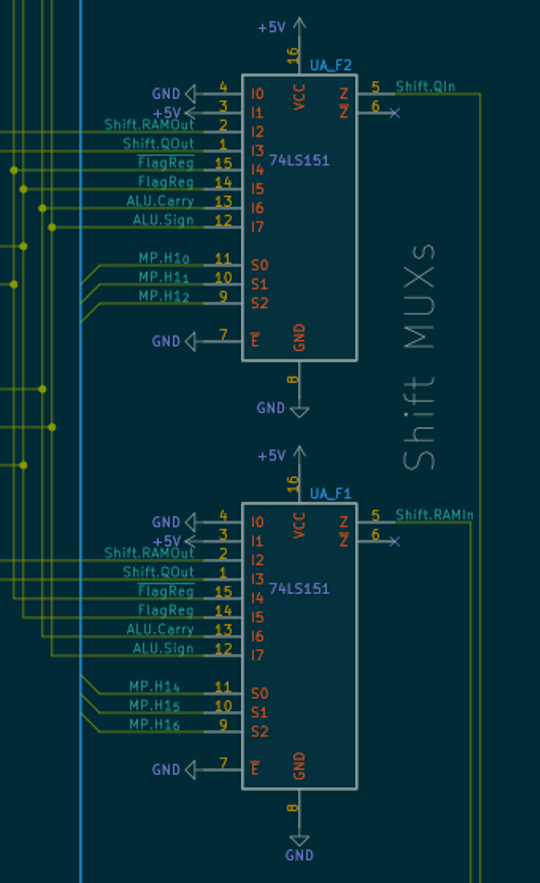

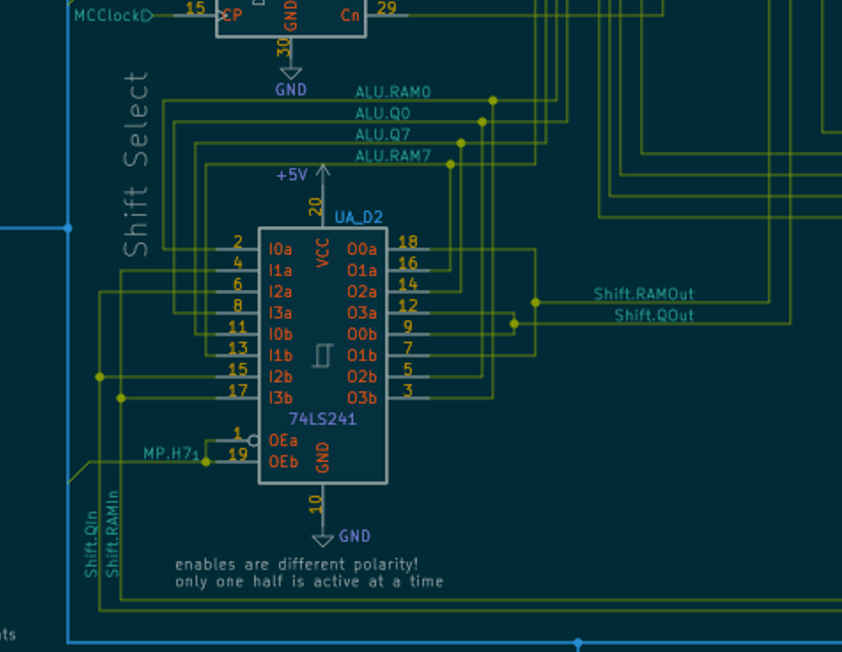

The next set of signals selects the source for the bit that gets shifted into the 2901 Q register and RAM register during a shift operation. This bit could get shifted into either the high or low bit depending on the direction of the shift.

MP.H10 - Shift Qin Select 0
MP.H11 - Shift Qin Select 1
MP.H12 - Shift Qin Select 2

MP.H14 - Shift RAM In Select 0
MP.H15 - Shift RAM In Select 1
MP.H16 - Shift RAM In Select 2

These three lines select what will go into the carry input of the 2901's ALU which is used during addition and subtraction operations.

MP.H84 - ALU.Carry_IN Select 0
MP.H85 - ALU.Carry_IN Select 1
MP.H86 - ALU.Carry_IN Select 2

These signals are used to select the bit, for example Carry Out, that will be tested by the Microcode Sequencer to determine if a branch should be taken or not. Normally the branch selection is determined by the result of the current microcode instruction, but there is also a latch that records the state of a flag bit at the end of the previous instruction. The Flag Mux signals select which bit will be latched which can then be selected using Branch Select.

MP.H34 - Branch Select Invert
MP.H35 - Branch Select 0
MP.H36 - Branch Select 1
MP.H37 - Branch Select 2

MP.H30 - Flag Mux Invert
MP.H31 - Flag Mux 0
MP.H32 - Flag Mux 1
MP.H33 - Flag Mux 2

These signals control which microcode instruction gets executed next. I discussed this in detail in a previous post.

MP.H80 - Control Sequence Next Select  0

MP.H81 - Control Sequence Next Select  1

MP.H82 - Control Sequence Next Select  2

MP.H83 - Control Sequencer B8

MP.H87 - Control Sequencer B9

This set of signals controls reading and writing from various sources on the board. This includes RAM, the system register and various control and status signals. One of the outputs from these control muxes is always enabled, but some are unused so these can be specified in the microcode when no I/O operation is needed.

MP.H20 - Read Control 0

MP.H21 - Read Control 1

MP.H22 - Read Control 2

MP.H23 - Read Control 3

MP.H24 - Write Control 0

MP.H25 - Write Control 1

MP.H26 - Write Control 2

MP.H27 - Write Control 3

This signal disconnects the output of the ALU from the Data.Fx bus and connects that bus to the Data.INx bus. This allows data to be passed between parts of the CPU without the ALU being involved. For example, this allows a branch destination to be passed directly from the Constant ROM to the Control Sequencer.

MP.H77 - DataRtoW - R/W Data Bridge

I will cover this signal in a later pot on how the RAM works.

MP.H63 - RAM Address Counter enable

This is an interesting signal. It simply goes to a test point on the board and doesn't actually control anything. I assume this was used for debugging during development. The released microcode ROMs never set this bit.

MP.H73 - TP4

The remaining signals directly control sections of the drive control electronics.

MP.H17 - CRCEnable

MP.H13 - RDSSEL Sync Select

MP.H74 - CRCout

MP.H75 - CRCReset

MP.H76 - TSM_CSEL



Centurion FFC Overview

In my last two posts I took a look at the two key components that form the heart of the Centurion FFC board's custom CPU. Now let's take a step back and take a look at an overview of the board. The FFC is actually composed of two boards, one is primarily for the CPU and the other for the drive control, but there is some overlap.

This is the board with the drive control electronics.

This is the board that contains the drive control CPU which is the one I am going to focus on in these posts.

Here is a block diagram I created of the CPU section. Each thick colored line is a different bus in the circuit. This may look complicated by we can look at it piece by piece to more easily understand it.

As discussed in my last post, the 8x02 Control Sequencer provides the program counter for the microcode program and also controls the jumps and branches within the code. It outputs the MP.Ax bus which is used to address the Microcode ROM which controls the functions of the CPU, the Constant ROM which provides a single data byte for each microcode instruction and the Sequence Control ROM which controls how the sequencer determines what the next instruction should be.

Coming out of the Microcode ROMs is the MP.Hxx bus which has the control signals that control the rest of the CPU. We will go into more details on these in later posts.

There are two data buses in the processor, one that goes into the 2901 ALU and another that comes out of it. The one going into the ALU is shown in red and is called Data.INx. The data on this bus can come from RAM, the Constant ROM, the System Data Register, or input devices. The one going out of the ALU is in orange and called Data.Fx. The data on this bus can go to the RAM, to output devices, System Data Register, or to the Control Sequencer to allow for jumps or branches to a specific address in the microcode.

The two buses can also be linked together through the Data Bridge. When the bridge is enabled, the output of the 2901 is disabled. This allows, for example, the constant ROM to be fed directly to the Sequence Controller to provide branch addresses.



In my next post we will look at the what each bit of the microcode does.

Centurion FFC Microcode Sequencer

In my last post I described the AMD 2901 Chip Slice which forms the core the Centurion floppy disk controller. The 2901 provides the two fundamental components of a CPU, registers and an Arithmetic Logic Unit (ALU). The question is, how do you turn a 2901 into something that can execute code? The key to this is microcode.

You can think of microcode as machine language instructions, but each bit of the microcode instruction controls a single signal within the CPU. For example the the 2901 has eight inputs which control the ALU function, each of these inputs would be a single bit in the microcode instruction. It is not uncommon for microprocessors to use microcode under the hood, where it is hidden from the programmer. The programmer works with machine language opcodes each of which executes one or more microcode instructions. The Centurion FFC on the other hand uses microcode directly.

The Centurion FFC has seven microcode ROMs making for a 56 bit wide microcode instruction, and each is 1K. There is also an eighth ROM that store immediate data instead of control signals which can be fed into the 2901 and other parts of the CPU. Before we can look at what the microcode bits do, we need to see how microcode is addressed. For that, the board uses the Signetics 8X02A Control Store Sequencer. Here is the block diagram of that chip:

The chip contains a program counter which drives the nine address bits that go to the microcode ROMs. The next address is controlled by the AC0..AC2 inputs which comes from bits 0..2 of microcode ROM H8, so each microcode instruction also determines which instruction get's executed next. Here are the function of those controls lines, they are numerically out of order but I think they make more sense this way...

7 = Reset. This is the first value that needs to be applied to chip. It resets the program counter to 0.

1 = Increment. This is the simplest and most common function, it just increments the program counter by one.

0 = Test and Skip. This is the simplest flow control function. If the Test input to the chip is high, the program counter in incremented by two, thus skipping an instruction. If the input is low, the program counter is incremented by one. This makes it easy to implement a branch without a need to specify an explicit destination.

5 = Push for Looping. This function pushes the current address onto the chips internal stack, and then increments the program counter. This is used to start a loop.

2 = Branch to Loop. If the Test input is high, the top value is popped off the internal stack into the program counter, otherwise the address is incremented and the top value popped and discarded. This used to test for the end of a conditional loop started with the Push for Looping function.

4 = Branch to Subroutine.  If the Test input is high the next address is pushed onto the chip's internal stack and then the program counter is loaded from the B0-B9 inputs to the chip, we will look at where those come from below. If the Test input is zero the counter increments to the next instruction. This function works as a conditional subroutine call, and since one of the conditions can be a static 1, it can also function a simple jump to subroutine.

3 = Pop Stock. This pops the top value off the stack and puts it in the program counter. This allows the program to return from subroutines called from Branch to Subroutine.

6 = Branch if Test Is True. If the Test input is high, the program counter is loaded from the B0-B9 inputs, otherwise the program counter is incremented. This works as a branch to a specific address.

The Branch to Subroutine and Branch if Test functions branch to the address on the B0-B9 inputs. This data can come from two places on the FFC, either from the constant ROM or from the output of the ALU.

AMD 2901 Chip Slice

In the early days of computers, processors were build from discrete components starting with relays, vacuum tubes, transistors and then small scale integrated circuit chips. In the early 1970's the first microprocessors were introduced which made it easy to construct personal computers but they lacked the processing power needed for mini and mainframe computers. Companies like AMD provided a middle ground between these two options in the form of large scale integrated circuit chips that provided the basic building blocks of a processor. The key component of the AMD family was the 2901 chip slice.

I first encountered this chip when I was working on the MAME driver for that Atari arcade game I-Robot. I-Robot was the first arcade game to used solid filled 3d polygons. The 2901 was used as the core of a custom processor that did all the 3D calculations.

More recently I started watching the Usagi Electric YouTube channel where he has been working on a Centurion mini-computer. You can see the playlist of videos about this project here:

https://www.youtube.com/watch?v=DJ1HwuYBuss&list=PLnw98JPyObn0wJFdbcRDP7LMz8Aw2T97V

The main CPU as well as some of the controller cards in this system were also based on the 2901.  I am going to take an in depth look at the FFC floppy controller board. You can find a lot of information about this board in this Github repository. We will start by looking at the 2901 Chip Slice Processor.

Here is the block diagram of he 2901.

The chip has two major parts, the RAM block which is used to create 16 internal CPU registers, and the Arithmetic Logic Unit (ALU)  which does addition, subtraction and logical operations. The RAM and ALU are each 4 bits wide, but you can combine multiple chips to create as wide a data path as is needed. This is why it is referred to as a chip "slice".

Now let's look at the inputs of the chip to better understand how it works. First there is the A and B address inputs. These are both 4 bits and select which location in memory is put on the A and B bus. To be clear there is only one block of memory, so if A and B are the same, then they are putting the same data on both busses.

The next input is 3 bits for the source selection, this will select what goes into the two inputs of the ALU as follows:

A and B are the data selected by the A and B address inputs. Q is a temporary holding register separate from the RAM registers. D is the direct data inputs to the chip. Finally 0 makes all four bits are zero.

Next are the three function selection bits. These select the function the ALU will perform and include addition, subtraction and logical operators.

The final control inputs, called the destination, are a little more complicated since they control destination, output and shifting.

Lets start with the first four since they do not involve shifting.

0 -  Transfers the output of the ALU, called F, to the Q register and also puts that output on the chip's data output, called Y.

1- This is called no-op and just puts the ALU output on the Y output but does not store it anywhere else.

2 - This passes the output of the ALU to the RAM location selected by the B input. The RAM location addressed by A is put on the data output.

3 - This passes the output of the ALU to the RAM location selected by the B input and also puts on the data output.

The next four destinations do shift operations before storing the results in RAM or the Q register. Both shifts have external inputs/outputs on either end, so if a value is shifted down the low bit is available on and output and a new high bit comes in from an input. This setup allows the shift operations to work across multiple 2901s.

4 - Loads the ALU Output/2 into the B memory, Q/2 into Q and outputs the unshifted ALU output.

5. Loads the ALU Output/2 into the B memory and outputs the unshifted ALU output.

6. Loads the ALU Output*2 into the B memory, Q*2 into Q and outputs the unshifted ALU output.

7. Loads the ALU Output*2 into the B memory, and outputs the unshifted ALU output.

You will notice that there is no way to get external data directly into one of the RAM registers. To do this we would use the DZ source which is external data and zero and then do a function like ADD and finally do a destination of RAMF. This will take the input, add 0 and then store it in the RAM registers pointed to by B.

Now that we have looked at the control pins, let look at the status pins.

F=0 - This pin is used to indicate that all four outputs of the ALU are zero. This is open collector so if there are multiple 2901s, these pins will be tied together on all the chips. If any one indicates non-zero it pull the line low,. If all the chips indicate zero and external resistor pull the line high.

OVR - This pin indicates an arithmetic two's complement operation overflowed into the sign bit. If using multiple 2901s this would only be relevant on the last (highest bits) chips.

Cn, Cn+4 - Carry in and out

~P,~G - These are used to do a fast carry between multiple 2901s. This can be done with the Cn,Cn+4 pins but the fast carry pins allow the processor to run faster, but requires some extra hardware.

F3 - The most significant bit of the ALU output. On the last 2901 this could be used as a sign bit.

The final two signals are for general control of the chip.

Most operations in the chip are asynchronous, but there are a couple things controlled by the CP clock input. It controls the latching of the Q registers and the RAM register outputs and also latches the data into the RAM registers.

The final input is is Output Enable (OE) which enables the data outputs from the chip.

Commodore 64 Repair

Recently Josh over at RetroTV1 Tech purchased a C64 that the seller said was in working order. He wasn't able to get it working so he sent it to me to see if I could repair it. He has put up a video showing what he did to try to get the system to work.

The system was very clean and in good condition.

The paper shield had some sort of corrosion on it which I cleaned up before returning the system.

The inside of the unit was also very clean. Josh had swapped the PLA chip with a modern replacement since that is a common point of failure but this did not resolve the problem.

I unsolder the lower shield to get a look at the back of the board which looked clean and had no obvious evidence of prior repairs.

When powering the unit up with the dead test cartridge it flashed the screen with a code the indicated a bad RAM chip. Since the RAM chips were soldered in I wanted to rule out everything else before replacing the RAM chip. So I started by swapping the PLA and the SID with a known good unit. I also tried swapping in the original PLA. I was getting very strange results during this process. It took a while but I eventually figured out what I was doing wrong.

Here is a picture of Josh's C64 with the locations of the PLA and SID.

Mine had a slightly different PCB rev and you can see here that the positions of the PLA and SID were revered. The chips have the same number of pins so I was mistakenly putting them in the wrong sockets!

With that worked out I was quickly able to determine the Josh's C64 had a bad SID and that his original and replacement PLAs were fine. Whatever was wrong with the SID was appearing as a RAM failure. I happened to have a spare SID in my chip collection, no idea where I got that from because I never did any C64 repairs, so I put that one in and that got the dead test working. Even though this SID allowed the system to work, I was getting really bad sound out of it so we ended up getting a modern replacement SID. We chose the ARMSID which has a really nice sound to it.

Next step was to remove the dead test cartridge and boot the system normally. When I did this I got just a black screen. I did some research and the most common cause is a bad Kernel ROM. I swapped that with the one in my system and confirmed it was the cause.

The C64 ROMs have a different pinout then standard EPROMs. Since I have an EPROM programmer and the parts on hand I decided to try to build an EPROM adapter as shown on this page:

https://ist.uwaterloo.ca/~schepers/sockets.html

Here are a few pictures of that build process. You can also buy a PCB for this that makes the process a lot easier.

This adaptor worked ok, but Josh decided to get a modern replacement since it would be more reliable.

With all these problems worked out, the final step was to replace the electrolytic capacitors in the system. This is a great site for cap kits, the provide the kits and good instructions on how to replace them. When you buy a kit be sure to get the one that matches the version of the PCB your system has.

https://console5.com/store/commodore-64-c64-cap-kit-b-assy-250407.html

The system has quite a few electrolytic caps that need to be replaced. Be sure to read the instruction on the web site since the replacements are not all identical to the originals.

Josh will eventually be doing a video to show of the repaired system.



CPS Super Salt - Error Display Board

The schematics for the Atari CPS Super Salt Diagnostic Assembly shows a connector labeled "Error Display Interface for Future Use". There are no schematics for this board and I haven't been able to find much information on this. Presumably this is used to display error codes, especially when the system doesn't work enough to get a display on the screen.

Besides power the signals going to the display board are the four direction pins on joystick ports 1 and 2 which can server as inputs or outputs (these are labeled D0-D7), the motor control, command and data outputs from the SIO port, and OE which is just an inversion of the command signal.

There are no schematics for this board and I haven't been able to find much information about it, but I did find a few pictures of the board. Here is a picture of the board installed in the test assembly. It is composed of two parts, the main board which plugs into the test unit with a connector at the top middle, and a second smaller display board which plugs into a card edge connector on the side of the main board.

Here is the display board. There are three empty sockets in this picture labeled CR2-CR4. CR is the reference designator for a diode so I assume these held 7-segment LED numeric displays.

You can see a device in the lower right that could be a 7-segment display, although the form factor is rather strange. There is a "C" on the PCB next to it so I assume this is CR1.

The other major component on the board is a 74LS244 octal buffer/driver with a tri-state output. This chip doesn't do any sort of latching, but it's output can be tri-stated to allow something else to control the signals the outputs are connected to.

On the main board is a oscillator circuit.

The chip is a MM5369 17 Stage Oscillator/Divider. The datasheet for this chip provides a schematic for how it is used and the appears to correspond to what we see on the board just with a fixed capacitor instead of a variable one. The amount the chip divides the clock is mask programmed at the factory so we can't determine the output frequency.

Here is one of the more interesting sections of the main board.

The chip in this section is an MM74C926 4-Digit Counter with Multiplexed 7-Segment Output Driver which confirms my suspicion that the display board had 7-segment LED displays on it. Once again, the schematic from the datasheet fits with the components we see on the board.

Driving a 7-segment display requires a signal for each segment, so to drive four you would normally need 28 signals. This chip simplifies this by multiplexing all four displays onto the same seven segment drivers. The cathode of the each display is sequentially activated by the chip through the transistors and this is done fast enough so it looks like all four are on at the same time. The MC74C926 has an internal counter driven by a clock so it can only display what is in it's counter. The traces from the segment drivers appear to go directly to the LED displays.

We can see on the top of the board that the 8 data signals from the first two joystick ports go directly to the display board. It's hard to see where they go from there but it looks like they may go to the 74LS244. If they do then it is possible that 74LS244 is connected to one of the LED displays so it can display either the counter output or a specific value from the computer. The output of the 74LS244 can be disabled, but I am not sure how the output from the counter would be blocked when the 74LS244 is enabled.

Here is the section of the board near the connector to the test fixture.

U1 is a MC14538B Dual Precision Retriggerable/Resettable Monostable Multivibrator. Basically the way this chip works is that each multivibrator has an input and and output. Activating the input, activates the output which stays active for an amount of time determined by a resistor/capacitor combination at which point it return to an inactive state. Since there are two resistor and two capacitors both multivibrators in the chip must be used. We can see that there is a trace coming off pin 15, which is controlled by one of the joystick port pins, that goes to this chip. Pin 14, another joystick pin, goes to a via which probably also connects to U1 on the back of the board. At first I though pin 15 was connected to pin 6 of the chip, which is an output, but from another angle it looks like it goes between the pins.



My best guess is that pins 14 and 15 of the interface connector go to the inputs of the two multivibrators which would allow the computer to control both the seven segment LED and to start the multivibrators.

Chip U6 contains three, three input NOR gates. Not enough of the trace are visible to determine how this chip is being used.

The remaining chips on the board are a MC14012B Dual 4-input NAND Gate, a 4040BE  12 stage ripple counter, and two 4001BE Quad 2-input NOR gates. Not enough traces are visible to know what purpose these serve.

This analysis gives some insight into how this board works, but there is still a lot of unknowns. If anyone has pictures of the back of the boards, please let me know since this would really help in figuring out how the boards works.
